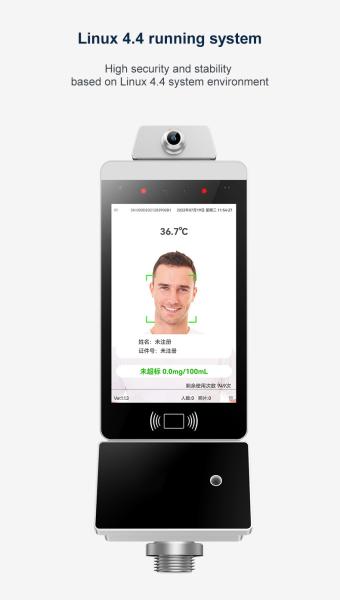

Rechargeable Wall Mounted Breathalyzer With Battery Powered Display
Product Description:
The Wall Mounted Breathalyzer is based on the LINUX 4.4 system environment, and it has the characteristics of high safety, high stability and high cost performance. It is equipped with a Wine inspection module Unit that supports mg/100mI(BAC) and mg/L(BrAC) sensor. The power source is a rechargeable battery and it has a high accuracy. It is powered by a low power consumption ARM Cortex-M7+Cortex-M4 dual-core processor. The blood range range is 0.000mg/L~2.000mg/L(BrAC) and the gas range is 0.000mg/100ml ~ 440mg/100ml (exhale blood and blood conversion coefficient is 2200 times). The alarm boundary value is 20mg/100ml and 80mg/100ml. The resolution is 0.001 mg/L(BrAC). The measurement accuracy is C<0.200, 0.025mg/L; 0.200≤C<0.400, 0.040mg/L; 0.400≤C<2.000, 10%. The indication repeatability is C<0.400, 0.006mg/L 0.400≤C<200 ,1.5%. The calibration cycle is 6 months. It is capable of blowing continuity detection for 3 seconds and it also supports face recognition traffic verification. To alert the user, it has an audible and visual alarm.
Features:
- Product Name: X70 Wall Mounted Breathalyzer
- Alarm: Audible And Visual
- Accuracy: High
- Data Storage: Yes
- Display: LCD
- Support alcohol detection and temperature test verification: Yes
- Data Interface: Provide a complete device data interface, which can be connected independently or to a PC.
Technical Parameters:
| Parameter | Value |
| Alarm | Audible And Visual |
| Product Name | X70 Wall Mounted Breathalyzer |
| Weight | 1.6KG |
| Accuracy | High |
| Battery Type | Rechargeable |
| Power Source | Battery |
| Display | LCD |
| Data Storage | Yes |
| Wine inspection module Unit support | mg/100mI(BAC), mg/L(BrAC) |
| Sensor | Special-level imported electrochemical sensor |
| Operating System | ARM single-chip computer system processor |
| Blood Range Range | 0.000mg/L~2.000mg/L(BrAC) |
| Gas Range | 0.000mg/100ml~440mg/100ml (exhale blood and blood conversion coefficient is 2200 times) |
| Alarm Boundary Value | 20mg/100ml, 80mg/100ml |
| Resolution | 0.001 mg/L(BrAC) |
| Measurement Accuracy | C<0.200, σ0.025mg/L; 0.200 ≤ C<0.400, σ0.040mg/L; 0.400 ≤ C<2.000, σ10%; |
| Indication Repeatability | C<0.400, 0.006mg/L; 0.400 ≤ C<2.000, 1.5%; |
| Calibration Cycle | 6 months |
| Blowing Continuity Detection | 3 seconds |
| Cloud Platform | Provide a cloud platform, a account can manage all equipment, save effort and effort |
| Temperature Measurement Accuracy | 0.3C (Environmental requirements: indoor 0°C~35°C, no heat source effect, distance 40~70cm) |
| Operating System Environment | LINUX 4.4 |
Applications:
The Fengzhaowei X70 Wall Mounted Breathalyzer is a fast and reliable device for accurately measuring a person's blood alcohol content. It is powered by a battery and features a LCD display with audible and visual alarms. Its advanced features include a JCO8 built-in 1.2T NPU computing power, using the international-flow AI algorithm, a cloud platform, and temperature measurement accuracy of 0.3°C. The hardware includes a dual core ARM 1.5G CPU, 1.2 Tops NPU, 8G internal storage, Linux 4.4 operating system, and 8-inch IPS LCD display with a resolution of 800 * 1280. The breathalyzer is housed in an aluminum alloy shell with a tempered glass panel, and its dimensions are 262*155*28mm. All these features make the X70 Wall Mounted Breathalyzer a reliable and accurate product for measuring blood alcohol content.
Customization:
Customized Service for Wall Mounted Breathalyzer
Fengzhaowei model X70 wall mounted breathalyzer has the following features:
- Brand Name: Fengzhaowei
- Model Number: X70
- Place of Origin: China
- Accuracy: High
- Product Name: X70 Wall Mounted Breathalyzer
- Weight: 1.6KG
- Battery Type: Rechargeable
- Alarm: Audible And Visual
Our Wall Mounted Breathalyzer also support alcohol detection and temperature test verification. It also provide a complete device data interface that can be connected independently, and a cloud platform that a account can manage all equipment, save effort and effort. The temperature measurement is also accurate as it can measure the temperature accuracy of: 0.3C (Environmental requirements: indoor 0°C ~ 35°C, no heat source effect, distance 40 ~ 70cm).
